Details

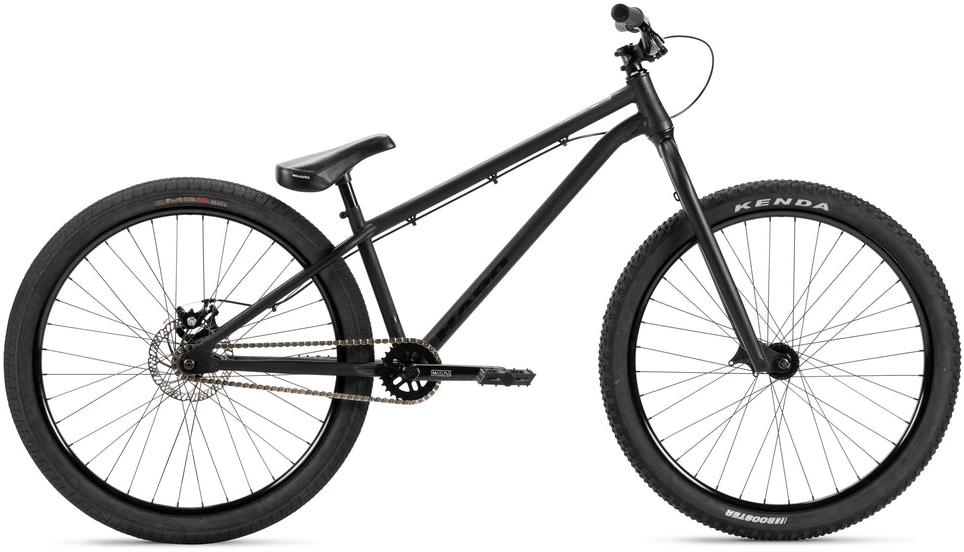

Meet the new Steel Reserve. Our all-new series of dirt jumpers built from the ground up to go sky-high, the SR1 gets you into the game with BMX-inspired feels. Start with an all-chromoly frame with a tapered, integrated head tube to house the rigid, chromoly fork for stiff, responsive control on all terrains. Haro 3-piece chromoly cranks spin on a sealed Euro bottom bracket, with a Halflink chain to pull your rear wheel in for the shortest, most responsive rear end possible. Sealed bearings all around, double-wall rims and a Tektro disc brake bring it on home. For the skatepark, pump track or roasting big sets, the Steel Reserve 1 is ready to go.
FEATURES:
- Full chromoly frame w/ Integrated HT, Euro bottom bracket
- 1 1/8" - 1 1/5" Threadless Full chromoly Fork w/ One Piece CNC Internally Threaded Steerer Tube & Tapered Legs
- Haro Baseline 3-pc chromoly 8 Spline 165mm
- 28/14
- Baseline Halflink Chain
- Alloy 6061 PG; 50mm rise; 35mm bore; 780w; 9° back; 5° up
- Premium "CK" Grips
- 26", 36 Hole Alloy, Double Wall, Pinned 30 Inner Width
- Front - 26x2.4" Kenda booster / Rear - 26x2.35" Haro MS5
- Tektro Mechanical Disc Brake 160mm Rotor
SIZE | |
---|---|
Seat Tube (C-T) | 320mm |
Top Tube (Effective) | 586.5mm |
Head Tube Angle | 69° |
Seat Tube Angle | 67.5° |
Chainstay Length | 399mm |
BB Drop | 17.5mm |
Wheelbase | 1064.5mm |
Head Tube Length | 112mm |
Reach | 415mm |
Axle to Crown | 478mm |
Fork Offset | 40mm |
Specs
Frame | 100% Chromoly frame with integrated headtube, Euro BB |
---|---|
Fork | 100% Chromoly One Piece CNC'd 1 1/8" - 1.5" Internally Threaded Steerer Tube, Tapered Legs |
Wheels | 26", 36 Hole Alloy, Double Wall, Pinned 30mm Inner Width |
Hubs |
Front Hub: Alloy double row sealed bearing 3/8" axle Rear Hub: Alloy sealed Cassette |
Tires | Front - 26x2.4" Kenda booster, Rear - 26x2.35" Haro MS5 |
Bottom Bracket | Double row sealed bearing euro BB |
Crankset | Baseline 8 Spline 165mm |
Chain | Baseline Halflink Chain |
Brakes | Tektro Mechanical Disc 160mm Rotor |
Handlebars | 6061 Aluminum 50mm rise, 35mm clamp, 780mm width, 9° back, 5° up |
Tape/Grips | Premium "CK" Grips |
Stem | Aluminum 50mm reach, 35mm clamp |
Headset | FSA 45° X 45° ACB Sealed 1-1/8" - 1.5" |
Seatpost | 27.2 Alloy Pivotal |
Saddle | Baseline 2 Piece |
Pedals | Polycarbonate |
* Subject to change without notice.
Videos
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black / One Size / 26-inch | 691840148542 | 14854 | 10524SR1 |
